1 RS232 Port Machine To Machine Gateway , Data Communication M2M Management System

m2m management system, machine to machine iot solution

System Feature

• Cortex M3 32-bit ARM
• Double watchdog to ensure stability
• With signal filtering mechanisms
• Stable reconnection strategy for data transmit
• Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
• Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
• Support Interlock programming, Event trigger
• Provide configure software, visual programming, over 100 parameters can be set
• Optional inside lithium battery for power lost alarm and keep 8-20 hours working

DI feature

• Monitor dry contact(NO or NC)

DO(T) feature

• Relay drivable output(drive voltage=power supply voltage, Drive current≤500mA)
• on/off/pulse DO by remote control or local event
• Remain down status when power lost

DO(K) feature

• Relay output(NO, contact load: 2A / 125VAC,220VDC)
• on/off/pulse DO by remote control or local event
• Remember status when power lost

AI feature

• Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision)
• Convert signal to actual measure value,support adjustment
• Configurable parameters for signal acquisition, alarm, data communication
• Sensor disconnect alarm

SMS feature

• Support 10 cell phone numbers for alarm and control
• Send sms alarm when input is triggered or reach alarm level
• All alarm and recover sms text can be edited
• Remote get device status or value by sending sms command
• Control output via sms command
• Configurable schedule for sms report IO channel's status or value
• Remote setting via sms commands
• Sms remind for sim card overdue
• Sms alar for power lost and recover

Wireless network communication

• Optianal onboard GPRS, 3g, 4g, Wi-Fi module
• TCP/IP connect at most 4 servers(support Static IP address or domain)
• Support post or respond mode for data communication
• Communicate with server by optional Cwt_IO, Modbus TCP, http post protocol
• Support two-way data transparent transmission with RS485 or RS232

Modbus feature

• Can be modbus master read/write salve over RS485
• Can be a I O module to be read/write by modbus master
• As modbus to gprs/3g gateway

machine to machine devices

machine to machine gateway

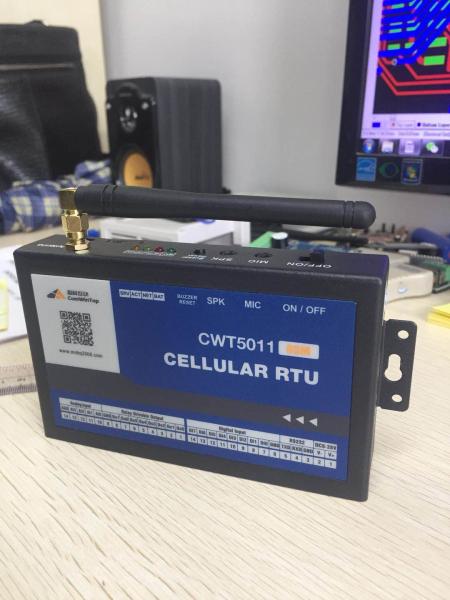

1 RS232 Port Machine To Machine Gateway , Data Communication M2M Management System Images
