GSM GPRS RTU IOT Data Logger Acquisition Equipment 8 Channels Digital Output

GSM GPRS RTU data logger, RTU data acquisition equipment

System Feature

• Adopted highly integrated industrial 32-bit ARM MCU
• Reliable performance with built-in double watchdog, 24×7 operation
• Dual digital filters for anti-noise
• Network-reconnect and retransmission to ensure data accurately transmit
• Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
• Configurable action schedule(second, minute, day, week, month)
• Can automatically execute tasks according to preset Events
• Provide console utility for visual programming over 100 parameters
• Optional inside lithium battery for power lost alarm and keep 8-20 hours working

DI feature

• Trigger dry contact(NO or NC)

DO(T) feature

• Open-collector output(drive voltage=power supply voltage, Drive current≤500mA)
• Remote or local event activate DO on/off/pulse
• Status memory function for power lost

DO(K) feature

• Relay output(NO, contact load: 2A / 125VAC,220VDC)
• on/off/pulse DO by remote control or local event
• Remain down status when power lost

AI feature

• Standard 4-20mA (option: 0-5V) signal in, Sampling frequency: 33Hz, 10-bit precision)
• Convert 4-20mA(0-5V) to physical value
• Configurable parameters for signal acquisition, alarm, data communication
• Sensor disconnect alarm

SMS feature

• Support 10 cell phone numbers for alarm and control
• Send sms alarm when input is triggered or reach alarm level
• Customizable sms messages, like alarm, receove, report
• Can send sms command to request any channel status or value
• Activate output by sending sms
• Sms report any IO channel’s status or value on schedule
• Remote update parameters by sms
• Can query SIM card balance, sms forward
• Support power lost sms alarm and recover sms(works with inside battery)

Wireless network communication

• Optianal onboard GPRS, 3g, 4g, Wi-Fi module
• Communicate with up to 4 servers(IP or domain) by TCP/IP
• Support post or respond mode for data communication
• Support http post, Modbus TCP, CWT protocol over cellular or Wi-Fi
• Can forward data between wireless network with RS485 or RS232

Modbus feature

• Polling salve over RS485 with modbus rtu protocol
• As a RS485 I O module to be polled by modbus master
• Support Modbus RTU to TCP convert over Ethernet or GPRS/3G

pulse counter data logger

gprs data logger

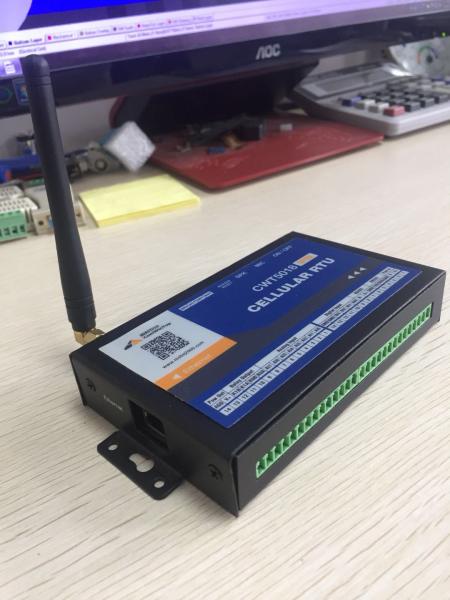

GSM GPRS RTU IOT Data Logger Acquisition Equipment 8 Channels Digital Output Images
